  High Resolution Coding

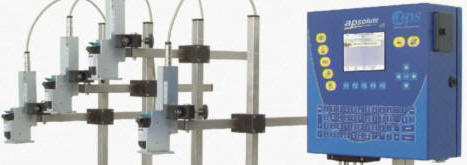

High Resolution Coding:This system has a technological substructure that overcomes many problems of coding solutions. It can print distinct  messages with 4 seperate printheads through 1 unit.

  Different colors can be used in each head simultaneously. All types of %100 readable barcodes and 2D codes can be printed with a print resolution up to 600 dpi.

  It can print on products on 4 seperate lines that are 25m – 35m apart, through 1 unit on packaging, PVC pipe profile and extrusion lines. Due to its technology, it can code on 4 seperate lines using 1 machine, especially on pipe and profile lines with no requirement of make-up, cleaning solvent or maintenance costs.

Therefore, it removes the purchase cost of buying 4 different ink-jet coding machines and additionally it removes the variable post-purchase costs such as make-up consumption and maintenance expenditures.

  •  Is not head-polluting,

  • Does not use solvent or make-up,

  • Does not require maintenance, does not use filters,

  • Instant printing when turned on,

  •  Does not include any fragrant or flammable material such as solvent or make-up,

  • Does not have any toxic waste,

  • Due to its technology, does not have any spare part that breaks down or requires change,

  • Reduces coding costs per product %50,

  • Provides different coding colors with 4 seperate printheads,

  • It can print distinct messages in different colors with 4 seperate printheads with a distance of 35m.


             PRINT SPECIALITIES

·HORIZONTAL PRINT RESOLUTION: 60 – 600 dpi (dots per inch)

·VERTICAL PRINT: RESOLUTION: 300 – 600 dpi (dots per inch)

·PRINT SPEED: 300 m/min

·PRINT TYPE: Date / time / expiration date information in programmable formats, programmable counters up to 10, 5 shift codes indicating shift details, variable text alternatives

·SURFACE FORMAT: Rotation (0, 90, 180, 270), negative print, visible and invisible print capabilities, conoid print

·ELECTRICAL POWER: 90 – 264 VAC, FREQUENCY: 47 – 63 Hz, POWER: 199 VA, HUMIDITY: 20 – 80% (non-condensed)

·OPERATION DEGREE: 0 – 50 C, IP VALUE: IP 54

YÜKSEK REZONANS KODLAMA
YÜKSEK REZONANS KODLAMA

yuksek_rezonans_kodlama.htm APSOLUTE UNIVERSAL:Best Printer

OPERATION SPECIALITIES

  • ENCODER INPUT: 2

  • PRINT MOTION: 1 per group, DISTINCT SPEED/GROUP: Available (Variable on 2 different speeds)

  • DISTINCT MESSAGE/GROUP: Available

  • DIGITAL INPUTS: 8, protected against adverse connections, exteriorly programmable, Vs=24 V, cartridge low warning

  • MESSAGE CAPACITY: 128 MB (more than 25.000 messages)

  • LANGUAGE: Programmable (Turkish, English, German, French etc.)

  • ALARM: Available and complete, MEMORY: Back-up information, transmission to high level, 3 different user level

  • STANDARTS: CE Certificate

  • INK SPECIALITIES: Porous, semi-porous, non-porous

  • Variable text, date/time,

  • Production date / expiration date / user information, counter, shift code,

  • Logos, most common 1D and 2D barcodes,

  • Due to its RS-232 technology and Ethernet, it minimizes human faults,

  • Adds 3 optional heads to 4 standart groups, therefore 4 distinct units control 4 distinct production lines,

  • Code on non-porous substrates (hard carton, plastic etc.),

  • Simplicity with message designing and minimizing maintenance costs in high resolution prints,

  • Simultaneous usage of water-based ink and multi-substrate fast-drying ink in the same printer,

  • GROUP COUNT: 4 standart, PRINTHEAD COUNT: 1 standart, 3 optional,

  • FONT TYPE: Variable alternatives, TEXT LINE: Unlimited, PRINT SIZE: 0,28mm – 50,80 mm

  • PRINT CAPACITY: Logo, 1D barcode (2/5, code 39, code 128, EAN 8, EAN 128, UPC-A, UPC-E, ITF-14) and 2D barcodes

  • COMMUNICATION CAPACITY: BCD (binary-coded decimal system), RS 232, Ethernet

  • PRINTER SIZE: 34 cm x 34 cm x 17 cm

  • PRINTHEAD SIZE: 21 cm x 3 cm x 9.5 cm

  • PRINTER WEIGHT: 10 KG

  • LENGTH OF DATA CABLES: 5, 10, 15 mt (other lengthes are provided upon request)
